Thursday, 31 March 2016

Exporting for 3D print

The subject of this blog is one of those topics that rarely gets covered in depth. In practice I am frequently telling customers to move their data to the origin before exporting for 3D print. But why is this?

Many BIM, CAD and 3D modelling programs have a very large drawing space. An example of why this would be useful is when designing a very large structure like a road or railway. Similarly a large coordinate space allows buildings to be designed at their correct location in relation to a city grid.

When exporting 3D models for applications such as 3D printing a problem can occur causing the exported data to become deformed as shown in the image below.

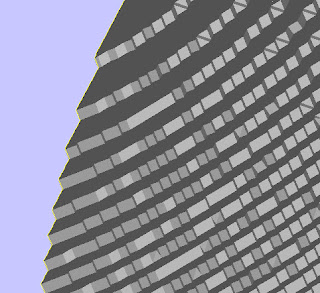

Bad STL export of sphere from Rhino when
deliberately modelling far from origin



The problem seems to be that most 3D modelling programs are based on geometric modelling Kernels such as ACIS or Parasolid. These work fine when close to the origin but lose accuracy outside of the kernel's modelling space.

Confusingly many of the applications functionality is unaffected by modelling outside the kernels modelling space but certain functions either fail completely or result in degraded data.

In MicroStation for example the coordinate system (Working Area) will go well beyond a million km from the origin but the Solids Area is only a 4.2km cube. The 4.2km limit being set by the Parasolid modelling kernel used in MicroStation. When you draw more than 2.1km from the origin the lower resolution may not be immediately apparent but may manifest downstream, such as when you export to STL etc.

This is not a problem restricted to MicroStation. It is a problem with most 3D modelling packages. As a consequence it is always best practice to model near the origin whenever possible.









Modern Architectural Design Tools Timeline

The following timeline places various architectural design tools by date. The purpose for this record was to create a context in which to view 3D printing as a design tool. From this point of view, today (2016) it is clear that the use of 3D printing in architecture is still very new. Even though early adopters were employing SLS and SLA printing for architectural model making in the 1990s and plaster-based printing from the 2000s these are still few and far between.

Four buildings have been added to the timeline to act as a reference. These are somewhat arbitrary and do not necessarily represent precedents in use of technology.

Each of the buildings shown relate in some way to the story of computing in architecture, not least the Lloyds building, the design of which commenced before any of the CAD packages that we know today. The Lloyds building was designed and built in the period that saw the appearance of the first personal computers. This led to a change in the way buildings are used and serviced and consequently changed the form of the buildings themselves. The affect of computing on architecture is undeniable but not always obvious. New design tools change the way architects work but the affect of design tools on the design of the buildings produced is sometimes less easy to identify.

There have been a great many pioneers of architectural design tools. Many tools have been developed and for one reason or other they have been abandoned or superseded.  It is worth making the observation that there is often little inclination to share detailed information on active design projects. Once buildings are complete and considerations of confidentiality have past these details fade from memory as focus switches to new challenges. Therefore much pioneering work is lost to public record. This timeline is admittedly only the bare bones of the story.


1928 Tintenkuli nibless drawing pen (precursor to Rotring Rapidograph)

1953 Rotring Rapidograph drawing pen

1953 IBM 650 series of computers

1956 First computer keyboard

1957 Jorn Utzon wins international competition to design Sydney Opera House. Ove Arup & Partners engaged as engineers.


Detalle interior ópera Sydney
Sydney Opera House detail
Image by Leithcote / Antony Oliver (Flickr)
via Wikimedia Commons


1959 Letraset founded - manually applied lettering system

1959 Calcomp 565 pen plotter

1960 DEC release first Mini Computer, the PDP-1, priced between $125,000 and $250,000. This computer was used to play 'Spacewar', the first digital screen game.


Spacewar running on PDP-1
Image Joi Ito via Wikimedia Commons



1962 Douglas Englebart envisions BIM in "Augmenting Human Intellect". He anticipates
object based design, parametric manipulation and a relational database

1963 Ivan Sutherland writes Sketchpad considered to be the ancestor of modern CAD programs

1963 First Pantone Matching System Printers Edition

1963 First computer mouse, invented by Douglas Englebert

1965 After 8 years work on Sydney Opera House Tim Rice and Tony Cramm write a program from scratch, they run it at night borrowing time on an Australian General Electric computer to calculate positions of pre-cast segments.


Sydney Opera House construction 1968
Sydney Opera House 1968
Image by PhillipC (Flickr)
via Wikimedia Commons

1968 Conference 'Computer Graphics in Architecture and Design' Yale University

1969 Appalachian Conference, led by SOM at an IBM research facility. Out of this was formed the SOM, Computer Group

1973 Sydney Opera House opens

1974 Intergraph IGDS, precursor to MicroStation

1975 DRAW2D, SOM Computer Group

1977 DRAW3D, SOM Computer Group

 1977 Really Universal Computer Aided Production System (RUCAPS) sold through GMW Computers Ltd (from GMW Architects)

1978 Richard Rogers begins work on Lloyd's Building

1981 IBM launches first Personal Computer running Microsoft MS DOS 1.0

1982 AutoCAD 1.0

1982 Catia 1.0

1982 Romulus, the first 3D modelling kernel. Later becomes ACIS.

1984 MicroStation 1.0

1984 ArchiCAD 1.0 (named Radar CH for first version only)

1984 First HP LaserJet printer, Apple's LaserWriter followed the following year

1985 MiniCAD 1.0 (later renamed VectorWorks)

1986 Lloyds Building completed



Richard Rogers Partnership, Lloyds Building detail
Image from Oast House Archive via Wikimedia

1987 First commercial SLA 3D printer, SLA-1, made by 3D Systems

1988 STL file format

1989 First Commercial SLS 3D printer built by DTM (later acquired by 3D Systems)

1989 ACIS 3D modelling kernel

1989 Parasolid 3D modelling kernel

1990 Photoshop 1.0

1992 Magics 1.0 (an STL editor which became the industry standard software for 3D print bureaus.

1993 PDF 1.0

1994 Gehry Technologies founded

1997 First commercial Z Corporation 3D printer, Z402

1997 Foster + Partners begin work on 30 St Mary Axe

1998 Foster + Partners' Specialist Modelling Group formed, 30 St Mary Axe becomes one of their first projects

1998 Rhinoceros launched

2000 Morphosis buy a ZPrinter from Z Corporation. They are one of the first architectural practices to run a 3D printer in-house.

2000 Revit 1.0

2001 Microstation v8 (file format changes for first time)

2001 Smartgeometry Group formed

2002 Autodesk acquire Revit



2002 AutodDesk whitepaper "Building Information Modelling"

2003 Bentley Systems' Generative Components in Alpha

2003 64-bit processors become available in personal computers

2004 Morphosis begin designing Cooper Union building using 3D printing as part of the design process

2004 Foster + Partners' 30 St Mary Axe completed


Foster + Partners, 30 St Mary Axe
Image by Nevilley via Wikimedia


2005 Launch of Spectrum 510 colour 3D printer by ZCorporation. The increased resolution and build size meant reasonable quality architectural concept models could be printed overnight.

2008 - ZPrinter 650, replaced for the 510 with slightly larger build

2008 Great Recession begins

2009 Morphosis's Cooper Union building completed


Morphosis, Cooper Union building
Image by Short Dale via Wikimedia

2012 3D Systems acquires ZCorporation and rebrands the ZPrinter range as ProJet x60


Advertisement:

2016 Digital Craft - 3D Printing for Architectural Design, written by Bryan Ratzlaff and published by Lee 3D. The first book to deal with 3D printing for architectural design as its sole subject.


Find out more about Digital Craft at http://www.lee3d.co.uk/digitalcraft/










Thursday, 10 March 2016

The dark secret of consumer 3D printing

Consumer 3D printing is afflicted by a dreadful and undeniable flaw. Simply, there is little of value for the consumer to print.

Using your imagination is not as easy as we thought.

Design is difficult.

Making things of value has always involved skill and taken time. The invention of 3D printing changes nothing.

Why am I writing this? What has piqued me into writing this? The thing that has got my blood up on this occasion is the hysterical reaction on social media to a the artists Jan Nikolai Nelles and Nora Al-Badri supposed hoax.

The artists released a scan that they claimed they had clandestinely made of the bust of Nefertiti at the Neues Museum in Berlin. Their stated intent was to challenge notions of ownership of artifacts "With regard to the notion of belonging and possession of objects of other cultures, the artists intention is to make cultural objects publicly accessible." In this case the Nefertiti bust which clearly originated in Egypt and for historical reasons is now "property" of a German museum. A print of the bust made from the scan was apparently exhibited by the artists in Egypt.

Somewhere along the line the most important element of this engaging artistic narrative became whether or not a Kinect scanner was used. The artists said they were helped by some IT specialists with this and claim to be non technical.

From my experience running a 3D print bureau there are a great many artists that do not know the first thing about modelling in software but want to use 3D printing as a medium. This does not stop them and nor should it, they simply find someone who can do the work for them. It is perfectly normal for artists to hire specialists to do work for them whether it be casting bronze or scanning artworks.

There are artists that are completely immersed in technology and to a certain extent the technology becomes an end in itself and there are others who see the technology as a means to an end.

Anyway my point is that the hysteria that has blown up about whether a Kinect was used or reflects reflects directly back on the consumer end of the industry that is utterly inward looking. Focussed obsessively on the technology because in truth it there is not much you can do with it.

Consumer 3D printing and scanning has nothing at its centre. It is a great big void with no purpose.

Amid the outcry about how the Nefertiti image was made there are consumer 3D printing enthusiasts discussing how best to print it. Sometimes and without irony the same enthusiasts are shouting down the artists that brought this data to them in the first place.

There is a hunger if not a desperate need for good part to justify the continuing existence of consumer 3D printing. Again, using your imagination is not easy, design is difficult and making requires skill and time.

The traditional rapid prototyping (3D printing) industries remain high value low volume prototyping and modelmaking. There is real business there and nothing changed with the advent of consumer 3D printing.

The fact is that the 3D printing part of the process is a relatively quick and minor part of the process compared to the time involved to design the parts that are printed. Often data is being created by teams of people working over extended periods of time to create the data that we print overnight or in a few days as the case maybe.

There are many people engaged in trying to make a living at the consumer end of the market and it is not pretty. There is little money here. Its tough and people are going to lose their investments.

Expecting individuals with little or no software skills to create meaningful parts to print at home is laughable. Choosing parts to print from on line catalogues is little better. The materials and quality of a home printer is incomparable to mass produced traditionally manufactured product.

Artists have a real use for these new 3D technologies. They have exercised their imaginations over many years. It is difficult for some people to understand that artists do not necessarily make objects. How they make their work is irrelevant in many cases.

The fact is that with photogrammetry it will not be possible to prevent 3D images of artefacts being "released" from their "captor" museums in future. This is the real story that will exist long after the inflammatory language of lies and hoax and fraud and even the even weirder accusations of profiteering havedied away.

I strongly suspect the hysterical reaction to the utterly irrelevant Kinect question has much more to do with a reactionary loathing of artists daring to put their heads above the parapet with a meaningful and subversive statement than it does to do with which technology was used to make the statement.

The consumer printing crowd would do well to be less concerned about how their data was created and be thankful that they have something of value to print.
